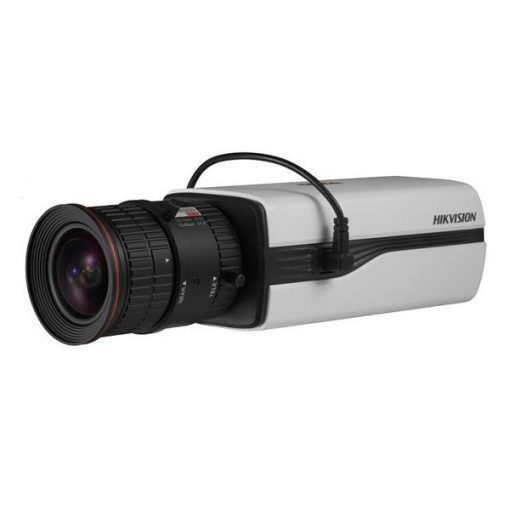

DS-2CC12D9T-A

Camera
Image Sensor:	\|	1/3″ Progressive Scan CMOS
Effective Pixels:	\|	1920(H)*1080(V)
Min. Illumination:	\|	Color : 0.01 Lux @(F1.2,AGC ON) B/W : 0.001 Lux @(F1.2,AGC ON)
Shutter Time:	\|	1/25(1/30) s to 1/50,000 s
Lens Mount:	\|	C/CS Mount
Auto Iris:	\|	DC Drive
Day& Night:	\|	IR cut filter with auto switch
Video Frame Rate:	\|	1080p@25fps/1080p@30fps
Synchronization:	\|	Internal Synchronization
Video Output:	\|	1Vp-p Composite Output (75Ω/BNC)
S/N Ratio:	\|	More than 52dB
Up the Coax:	\|	Support
Menu
Camera ID:	\|	On/off (15 characters, position programmable)
D/N Mode:	\|	Color/ BW/ EXT
Auto White Balance:	\|	ATW/ AWC-SET/ Indoor/ Outdoor/ Manual
Private Mask:	\|	On/Off, maximum 8 zones
Motion Detection:	\|	On/Off, maximum 4 zones
BLC:	\|	On/Off
AGC:	\|	Support
Anti-flicker:	\|	On/ Off
Language:	\|	English/ Japanese/ CHN1/ CHN2/ Korean/ German/ French/ Italian/ Spanish/ Polish/ Russian/ Portuguese/ Dutch/ Turkish/ Hebrew/ Arabic
Function:	\|	Eclipse, Digital noise reduction, Digital zoom(62x), Slow shutter, Mirror, Defog, Defect pixel correction, SMART D-ZOOM
General
Operating Conditions:	\|	-30 °C ~ 60 °C (-22 °F ~ 140 °F) Humidity 90% or less (non-condensing)
Power Supply:	\|	12 V DC ± 10%, 24 V AC ± 10%
Power Consumption:	\|	Max. 4W, -A: Max. 4.5W
Dimension:	\|	69.2×57.3×148.7mm(2.7” × 2.3” × 5.85”)
Weight:	\|	400g
