| Camera | ||
|---|---|---|
| Image Sensor: | | | 1/2.5″ Progressive Scan CMOS |
| Signal System: | | | PAL/NTSC |
| Min. Illumination: | | | Color: 0.01 lux @(F1.2, AGC ON), 0 lux with IR |
| Shutter time: | | | 1/3 s to 1/100,000 s |
| Slow shutter: | | | Support |
| Lens: | | | 2.8 mm, horizontal field of view: 102° 4 mm, horizontal field of view: 79° 6 mm, horizontal field of view: 50° 8 mm, horizontal field of view: 40° 12 mm, horizontal field of view: 23° |
| Lens Mount: | | | M12 |
| Adjustment Range: | | | Pan: 0° to 360°, tilt: 0° to 100°, rotate: 0° to 360° |
| Day& Night: | | | IR cut filter with auto switch |
| Wide Dynamic Range: | | | 120 dB |
| Digital noise reduction: | | | 3D DNR |
| Compression Standard | ||
| Video Compression: | | | H.265+/H.265/H.264+/H.264/MJPEG |
| Video bit rate: | | | 32Kbps~16Mbps |
| Triple Streams: | | | Yes |
| Image | ||
| Max. Image Resolution: | | | 3840 × 2160 |
| Frame Rate: | | | 50Hz: 20 fps (3840 × 2160), 25 fps (2560 × 1920, 2560 × 1440, 1920 × 1080, 1280 × 720) 60Hz: 20 fps (3840 × 2160), 30 fps (2560 × 1920, 2560 × 1440, 1920 × 1080, 1280 × 720) |
| Sub Stream: | | | 50Hz: 25fps (640 × 360, 352 × 288) 60Hz: 30fps (640 × 360, 352 × 240) |
| Third Stream: | | | 50Hz: 25fps (1280 × 720, 640 × 360, 352 × 288) 60Hz: 30fps (1280 × 720, 640 × 360, 352 × 240) |
| Image Enhancement: | | | BLC/3D DNR |
| Image Settings: | | | Rotate Mode, Saturation, Brightness, Contrast, Sharpness adjustable by client software or web browser |
| Target Cropping: | | | Support |
| ROI: | | | Support 1 fixed region for each stream |
| Day/Night Switch: | | | Auto/Scheduled |
| Network | ||
| Protocols: | | | TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6 |
| General Function: | | | One-key reset, Anti-Flicker, heartbeat, mirror, password protection, privacy mask, Watermark, IP address filtering |
| System Compatibility: | | | ONVIF (Profile S, Profile G), PSIA, CGI, ISAPI |
| Interface | ||
| Communication Interface: | | | 1 RJ45 10M / 100M Ethernet interface |
| On-board storage: | | | Built-in Micro SD/SDHC/SDXC slot, up to 128 GB |
| Smart Feature-set | ||
| Behavior Analysis: | | | Line crossing detection, Intrusion detection, Unattended baggage detection, Object removal detection |
| Line Crossing Detection: | | | Cross a pre-defined virtual line |
| Intrusion Detection: | | | Enter and loiter in a pre-defined virtual region |
| Unattended Baggage: | | | Objects left over in the pre-defined region such as the baggage, purse, dangerous materials |
| Object Removal: | | | Objects removed from the pre-defined region, such as the exhibits on display. |
| Recognition: | | | Face Detection |
| General | ||
| Operating Conditions: | | | -30 °C ~ 60 °C (-22 °F ~ 140 °F) Humidity 95% or less (non-condensing) |
| Power Supply: | | | 12 VDC ± 25%, PoE (802.3af Class3) |
| Power Consumption: | | | -I5: 12 VDC ± 25%, 7.5W; PoE, 9.5W -I8: 12 VDC ± 25%, 10 W; PoE, 12.5W |
| Weather Proof: | | | IP67 |
| IR Range: | | | -I5: up to 50 m; -I8: up to 80 m |
| Dimensions: | | | Camera: Φ104.8 × 299.7 mm (Φ4.13″ × 11.8″) Package: 386 × 156 × 155 mm (15.2″ × 6.14″ × 6.1″) |
| Weight: | | | 1200 g (2.65 lb.) |

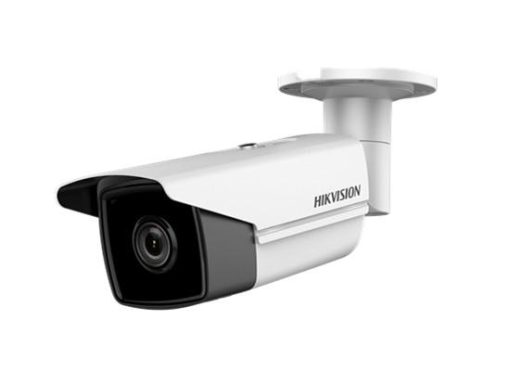

2-Line IP
DA-8IP2CD2T85FWD-I8
Giá: Liên hệ
• Up to 8 megapixel high resolution
• Max. 3840 × 2160@20fps
• 2.8 mm/4 mm/6 mm/8 mm/12 mm fixed lens, optional
• H.265, H.265+, H.264+, H.264
•120dB Wide Dynamic Range
• 3D Digital Noise Reduction
• DC12V & PoE (802.3af)
• IR range: 50 m, 80m, optional
• Support on-board storage, up to 128 GB
• IP67
