| Camera | |
| Image Sensor | 1/4″ progressive scan CMOS |
| Min. Illumination | Color: 0.01Lux @(F1.2, AGC ON),0 Lux with IR |
| Shutter Speed | 1/3s to 1/100,000 s, support slow shutter |
|
Lens |
2.8 mm @F2.2, horizontal field of view 92°, 4 mm @F2.2, horizontal field of view 70°
6 mm @F2.2, horizontal field of view 56° |
| Lens Mount | M12 |
| Day &Night | IR cut filter with auto switch |
| 3-Axis Adjustment (Bracket) | Pan: 0° to 360°, tilt: -90° to 90°,rotation: 0° to 360° |
| DNR(Digital Noise Reduction) | 3D DNR |
| WDR (Wide Dynamic Range) | Digital WDR |
| Compression Standard | |
|
Video Compression |
Main stream: H.264
Sub stream: H.264/MJPEG |
| H.264 Type | Baseline profile/Main profile |
| Video Bit Rate | 32 Kbps to2 Mbps |
| Image | |
| Max. Resolution | 1280 × 720 |
| Main Stream
Max. Frame Rate |
50Hz: 25fps@(1280 × 720)
60Hz: 30fps@(1280 × 720) |
| Sub-stream
Max. Frame Rate |
50Hz: 25fps@( 640 × 480, 352 × 288,320 × 240)
60Hz: 30fps@( 640 × 480, 352 × 240,320 × 240) |
| Image Settings | Brightness, saturation, contrast, sharpness are adjustable via web browser or client software |
| Day/Night Switch | Support auto, scheduled |
| Others | Mirror, BLC (area configurable), region of interest (support 1 fixed region) |
| Network | |
| Detection | Motion detection |
| Alarms | Video tampering, network disconnected, IP address conflicted |
|
Protocols |
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, Bonjour |
| Standard | ONVIF(PROFILE S,PROFILE G),PSIA,CGI,ISAPI |
| General Function | Anti-flicker,heartbeat, mirror, password protection, privacy mask,watermark |
| Interface | |
| Communication Interface | 1 RJ45 10M/100M self-adaptive Ethernet port |
| General | |
| Operating Conditions | -30 °C to60 °C (-22 °F to140 °F), humidity: 95% or less (non-condensing) |
| Power Supply | 12VDC ±25%, PoE (802.3af) |
| Power Consumption | Max. 4 W/5 W (PoE) |
| Ingress Protection | IP67 |
| IR Range | Up to 30 m |
| Dimensions | 69.1 mm ×66 mm × 172.7 mm ( 2.7″× 2.6″× 6.8″) |
| Weight | 500 g (1.1 lb.) |
1-Line IP

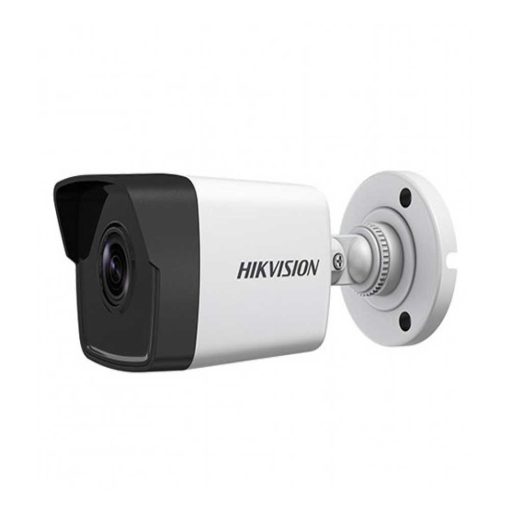

DS-2CD1001-I
Giá: Liên hệ
Cảm biến 1/4″ progressive scan CMOS
• Độ phân giải 1280 × 720@25fps
• Ống kính cố định 4mm (đặt hàng 2.8/6mm)
• Độ nhạy sáng 0.01Lux@F1.2
• Hồng ngoại 30m
• Digital WDR, AGC, BLC, 3D DNR
• Nguồn 12VDC, PoE
• IP67, 69.1×66×172.7mm, 500g
