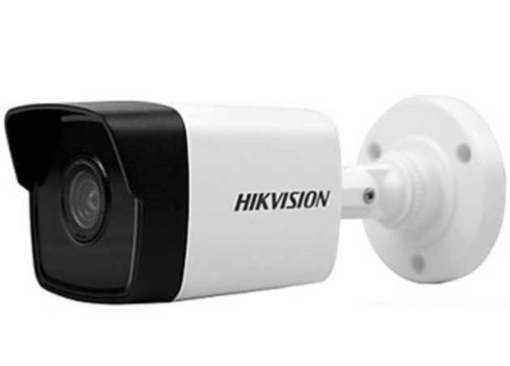

DS-2CD1023G0E-IF

Giá: Liên hệ

• Cảm biến 1/2.8″” progressive Scan CMOS

• Độ phân giải 1920×1080@30fps

• Ống kính cố định 2.8mm(đặt hàng 4mm)

• Độ nhạy sáng 0.028Lux@F2.0

• Hồng ngoại 30m • DWDR, BLC, 3D DNR

• Khe cắm thẻ nhớ microroSD 128GB (max) (chỉ hỗ trợ lưu hình ảnh và nhật ký)

• Nguồn 12VDC, PoE • IP67, Ø 110 mm × 93.2 mm , 280 g

Camera
Image Sensor	1/2.7″ Progressive Scan CMOS
Min. Illumination	Color: 0.01 Lux @ (F1.6, AGC ON), 0 Lux with IR
Shutter Speed	1/3 s to 1/100,000 s
Slow Shutter	Yes
Day & Night	IR Cut Filter
WDR	DWDR
Angle Adjustment	Pan: 0° to 360°, tilt: 0° to 180°, rotate: 0° to 360°
Lens
Lens Type	Fixed lens, 2.8/4 mm
Aperture	F1.6
FOV	2.8mm: Horizontal FOV: 113.4°, vertical FOV: 59.8°, diagonal FOV: 135.6° 4 mm: Horizontal FOV: 91.5°, vertical FOV: 46.1°, diagonal FOV: 109.8°
Lens Mount	M12
Illuminator
IR Range	Up to 30 m
Wavelength	850 nm
Video
Max. Resolution	1920 × 1080
Main Stream	50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720) 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720)
Sub Stream	50Hz: 25fps (640 × 480, 640 × 360, 320 × 240) 60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
Video Compression	Main stream: H.265+/H.264+/H.265/H.264 Sub-stream: H.265/H.264/MJPEG
H.264 Type	Baseline Profile/Main Profile/High Profile
H.264+	Main stream supports
H.265 Type	Main Profile
H.265+	Main stream supports
Video Bit Rate	32 Kbps to 8 Mbps
Smart Feature-Set
Basic Event	Motion detection, video tampering alarm, exception (illegal login, HDD full, HDD error)
Linkage Method	Upload to FTP/memory card, notify surveillance center, send email, trigger capture
Region of Interest	1 fixed region for main stream
Image Enhancement	BLC, 3D DNR
Image Setting	Rotate mode, saturation, brightness, contrast, sharpness, AGC and white balance adjustable by client software or web browser
Day/Night Switch	Day/Night/Auto/Schedule

DS-2CD1023G0E-IF
