Camera | |
Image Sensor | 1/4″ progressive scan CMOS |
Min. Illumination | Color: 0.01Lux @(F1.2,AGC ON), 0 Lux with IR |
Shutter Speed | 1/3s to 1/100,000 s, support slow shutter |
2.8 mm (4 mm/6 mm), | 2.8 mm @F2.0, horizontal field of view 92°, 4 mm @F2.2, horizontal field of view 74°
6 mm @F2.0, horizontal field of view 49° |
Lens Mount | M12 |
Day &Night | IR cut filter with auto switch |
2-Axis Adjustment | Pan: 0° to 355°, tilt: 0°to 70° |
DNR(Digital Noise Reduction) | 3D DNR |
WDR(Wide Dynamic Range) | Digital WDR |
Compression Standard | |
Video Compression |
Main stream: H.264
Sub stream: H.264/MJPEG |
H.264 Type | Baseline profile/Main profile |
Video Bit Rate | 32 Kbps to2 Mbps |
Image | |
Max. Resolution | 1280 × 720 |
Main Stream
Max. Frame Rate |
50Hz: 25fps@(1280 × 720)
60Hz: 30fps@(1280 × 720) |
Sub-stream
Max. Frame Rate |
50Hz: 25fps@(640 × 480, 352 × 288,320 × 240)
60Hz: 30fps@(640 × 480, 352 × 240,320 × 240) |
Image Settings | Brightness, saturation, contrast, sharpness are adjustable via web browser or client software |
Day/Night Switch | Support auto, scheduled |
Others | Mirror, BLC (area configurable), region of interest (support 1 fixed region) |
Network | |
Detections | Motion detection |
Alarms | Video tampering, network disconnected, IP address conflicted |
Protocols |
TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP, NTP,UPnP,SMTP,IGMP,802.1X,QoS,IPv6, Bonjour |
Standard | ONVIF(PROFILE S,PROFILE G),PSIA,CGI,ISAPI |
General Function | One-key reset, anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark |
Interface | |
Communication Interface | 1 RJ45 10M/100M self-adaptive Ethernet port |
Reset | Support |
General | |
Operating Conditions | -30 °C to60 °C (-22 °F to140 °F), humidity: 95% or less (non-condensing) |
Power Supply | 12V DC ± 25%, PoE (802.3af) |
Power Consumption | Max. 4 W |
Protection Level | IP67, IK10 |
IR Range | Up to 30 m |
Dimensions | Φ111 mm × 82 mm (4.4″ × 3.2″) |
Weight | 500 g (1.1 lb.) |

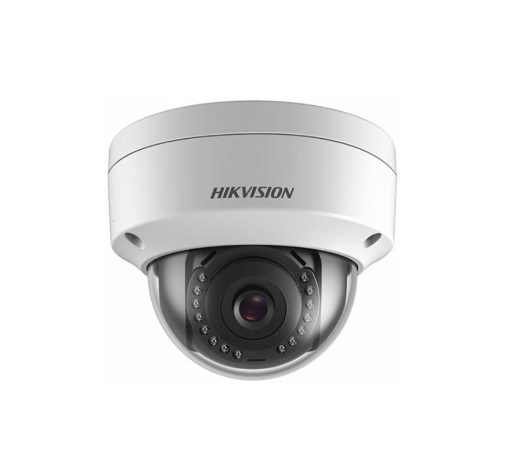

1-Line IP
DS-2CD1101-I
Giá: Liên hệ
Cảm biến 1/4″ progressive scan CMOS
• Độ phân giải 1280 × 720@25fps
• Ống kính cố định 2.8mm (đặt hàng 4/6mm)
• Độ nhạy sáng 0.01Lux@F1.2
• Hồng ngoại 30m
• Digital WDR, AGC, BLC, 3D DNR
• Nguồn 12VDC, PoE
• IP67, Φ111×82mm, 500g
