1-Line IP

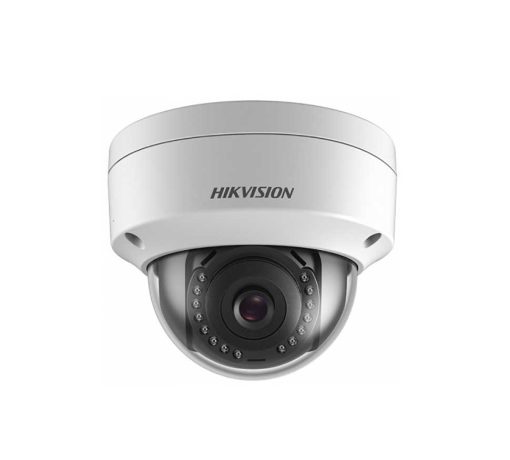

DS-2CD1121-I

Giá: Liên hệ

1/2.8″ progressive scan CMOS
 Up to 2.0 megapixel
 2.8 mm/4 mm/6 mm fixed focal lens
 Up to 30 m IR range
 Dual stream
 Digital WDR (Wide Dynamic Range)
 3D DNR (Digital Noise Reduction)
 PoE (Power over Ethernet)
 IP67, IK10
 Mobile monitoring via Hik-Connect

Danh mục: ,

Camera
Image Sensor 1/2.8″ progressive scan CMOS
Min. Illumination Color: 0.01 Lux @(F1.2, AGC ON), 0 Lux with IR
Shutter Speed 1/3 s to 1/100, 000 s, support slow shutter
Lens 2.8 mm @F2.0, horizontal field of view 105°, 4 mm @F2.2, horizontal field of view 84°

6 mm @F2.0, horizontal field of view 55°
Lens Mount M12
Day &Night IR cut filter with auto switch
2-Axis Adjustment Pan: 0° to 355°, tilt: 0° to 70°
DNR (Digital Noise Reduction) 3D DNR
WDR (Wide Dynamic Range) Digital WDR
Compression Standard
Video Compression Main stream: H.264+/H.264

Sub stream: H.264/MJPEG
H.264 Type Baseline profile/Main profile
Video Bit Rate 32 Kbps to 8 Mbps

Max. Resolution 1920 × 1080
Main Stream

Max. Frame Rate

 50Hz: 25fps @(1920 × 1080, 1280 × 960, 1280 × 720)

60Hz: 30fps @(1920 × 1080, 1280 × 960, 1280 × 720)
Sub-stream

Max. Frame Rate

 50Hz: 25fps @(704 × 576, 640 × 480, 352 × 288, 320 × 240)

60Hz: 30fps @(704 × 480, 640 × 480, 352 × 240, 320 × 240)
Image Settings Brightness, saturation, contrast, sharpness are adjustable via web browser or client software
Day/Night Switch Support auto, scheduled
Others Mirror, BLC (area configurable), region of interest (support 1 fixed region)

Network
Network Storage NAS (NFS, SMB/CIFS)
Detections Motion detection
Alarms Video tampering, network disconnected, IP address conflicted
Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, Bonjour
Standard ONVIF (PROFILE S, PROFILE G), ISAPI

General Function

One-key reset, anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter

Interface


Communication Interface 1 RJ45 10M/100M self-adaptive Ethernet port
Reset Support
General

Operating Conditions

-30 °C to 60 °C (-22 °F to 140 °F), humidity: 95% or less (non-condensing)

Power Supply

12 V DC ± 25%, PoE (802.3af)

Power Consumption

Max. 5 W

Protection Level

IP67, IK10

IR Range

Up to 30 m

Dimensions

Φ 111 mm × 82 mm (4.4″ × 3.2″)

Weight

500 g (1.1 lb.)
