| Model | DS-2CD1123G0E-I |
| Camera | |
| Image Sensor | 1/2.8 inch Progressive Scan CMOS |
| Min. Illumination | Color: 0.01 Lux @(F1.2, AGC ON), 0.028Lux @ (F2.0, AGC ON) |
| Shutter Speed | 1/3 s to 1/100,000 s |
| Slow Shutter | Yes |
| Day &Night | IR cut filter |
| Digital Noise Reduction | 3D DNR |
| WDR | DWDR |
| Angle Adjustment (Bracket) | Pan: 0° to 355°, tilt: 0° to 70°, rotate: 0° to 355° |
| Lens | |
| Focal length | 2.8/4 mm |
| Aperture | F2.0 |
| Focus | Fixed |
| Lens Mount | M12 |
| Compression Standard | |
| Video Compression | Main stream: H.265/H.264 Sub stream: H.265/H.264/MJPEG |
| Video Bit Rate | 32Kbps ~ 8Mbps |
| Image | |
| Max. Resolution | 1920 × 1080 |
| Image Enhancement | BLC, 3D DNR |
| Image Settings | Saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser |
| Day/Night Switch | Auto, scheduled, day, night |
| Network | |
| Alarm Trigger | Motion detection, video tampering alarm, illegal login |
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, DHCP, DNS, RTP, RTSP, RTCP, NTP, IGMP, QoS, UDP |
| General Function | Anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark |
| API | ONVIF (PROFILE S), ISAPI |
| Interface | |
| Communication | 1 RJ45 10M/ 100M Ethernet interface |
| General | |
| Power Supply | 12 VDC ± 25%, 5.5 mm coaxial power plug PoE (802.3af, class 3) |
| Power Consumption | 12 VDC, 0.4 A, Max: 5 W PoE: (802.3af, 36 V to 57 V), 0.2 A to 0.1 A, Max: 6.5 W |
| IR Range | up to 30m |
| Weather Proof | IP67, IK10 |
| Dimensions | Ø 111 mm × 82.4 mm |
| Weight | 400g |
1-Line IP

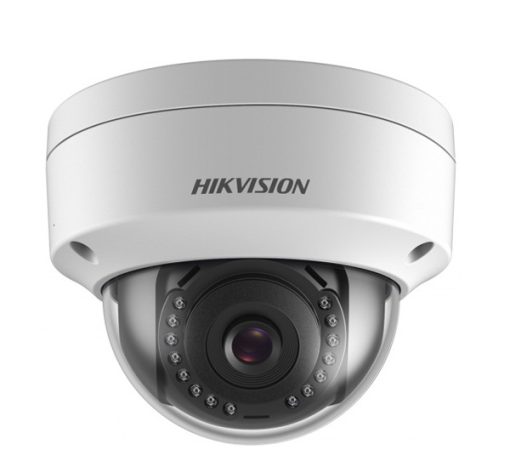

DS-2CD1123G0E-I
Giá: Liên hệ
Cảm biến 1/2.8″ progressive scan CMOS
• Độ phân giải 1920×1080@25fps
• Ống kính cố định 2.8mm (đặt hàng 4mm)
• Độ nhạy sáng 0.01Lux@F1.2
• Hồng ngoại 30m
• DWDR, AGC, BLC, 3D DNR
• Nguồn 12VDC, PoE
• IP67, IK10, Φ111×82.4mm, 400g
