Camera |
|||
| Image Sensor | 1/2.8″ progressive scan CMOS | ||
| Min. Illumination | Color: 0.01 Lux @(F1.2, AGC ON), 0.028Lux @ (F2.0, AGC ON) | ||
| Shutter Speed | 1/3 s to 1/100, 000 s | ||
| Slow Shutter | Yes | ||
| Auto-Iris | No | ||
| Day &Night | IR cut filter | ||
| Digital Noise Reduction | 3D DNR | ||
| WDR | DWDR | ||
| Angle Adjustment | Pan: 0° to 355°, tilt: 0° to 75° | ||
| Lens | |||
| Focal length | 2.8 mm | ||
| Aperture | F2.0 | ||
| Focus | Fixed | ||
| FOV | 2.8 mm, horizontal FOV 114.8°, vertical FOV 62°, diagonal FOV 135.5° | ||
| Lens Mount | M12 | ||
| IR | |||
| IR Range | Up to 30 m | ||
| Wavelength | 850 nm | ||
| Compression Standard | |||
| Video Compression | Main stream: H.265+/H.265/H.264+/H.264
Sub stream: H.265/H.264/MJPEG |
||
| H.264 Type | Main Profile/High Profile/Baseline Profile | ||
| H.265 Type | Main Profile | ||
| Video Bit Rate | 32 Kbps to 8 Mbps | ||
| Smart Feature-set | |||
| Region of Interest | 1 fixed region for main stream | ||
| Image | |||
| Max. Resolution | 1920 × 1080 | ||
| Main Stream
Max. Frame Rate |
50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720)
60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720) |
||
| Sub-stream
Max. Frame Rate |
50Hz: 25fps (640 × 480, 640 × 360, 320 × 240)
60Hz: 30fps (640 × 480, 640 × 360, 320 × 240) |
||
| Image Enhancement | BLC, 3D DNR | ||
| Image Setting | Saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser | ||
| Day/Night Switch | Auto, scheduled, day, night | ||
| Network | |||
| Alarm Trigger | Motion detection, video tampering alarm, illegal login | ||
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, DHCP, DNS, RTP, RTSP, RTCP, NTP, IGMP, QoS, UDP | ||
| General Function | Anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark | ||
| Firmware Version | V5.5.83 | ||
| API | ONVIF (PROFILE S), ISAPI | ||
| Simultaneous Live View | Up to 6 channels | ||
| User/Host | Up to 32 users
3 levels: Administrator, Operator, and User |
||
| Client | iVMS-4200, Hik-Connect, iVMS-5200, iVMS-4500 | ||
| Web Browser | IE8+, Chrome 31.0-44, Firefox 30.0-51, Safari 8.0+ | ||
| Interface | |||
| Communication Interface | 1 RJ45 10M/100M self-adaptive Ethernet port | ||
| General | |||
| Operating Conditions | -30 °C to 60 °C (-22 °F to 140 °F), humidity: 95% or less (non-condensing) | ||
| Power Supply | 12 VDC ± 25%, 5.5 mm coaxial power plug | ||
| Power Consumption and Current | 12 VDC, 0.4 A, Max: 5 W | ||
| Ingress Protection | IP67, IK10 | ||
| Material | Front cover: plastic, back cover & bracket: metal | ||
| Dimensions | Camera: Ø 111 mm × 82.4 mm (4.4″ × 3.2″)
With package: 134 mm × 134 mm × 108 mm (5.3″ × 5.3″ × 4.3″) |
||
| Weight | Camera: Approx. 400 g (0.9 lb.)
With package: Approx. 600 g (1.3 lb.) |
||

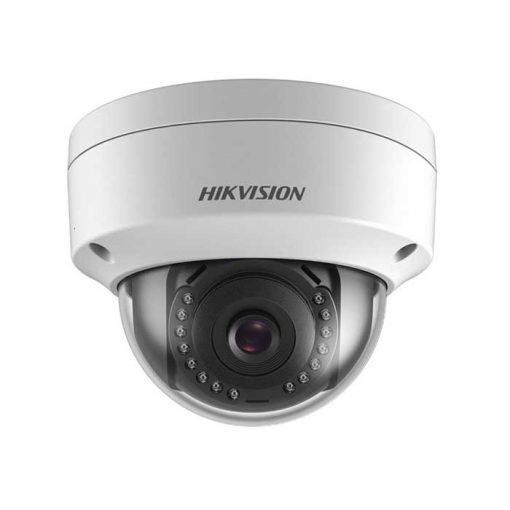

1-Line IP
DS-2CD1123G0E-ID
Giá: Liên hệ
• Cảm biến 1/2.8″ progressive Scan CMOS
• Độ phân giải 1920×1080@30fps
• Ống kính cố định 2.8mm(đặt hàng 4mm)
• Độ nhạy sáng 0.028Lux@F2.0
• Hồng ngoại 30m
• DWDR, BLC, 3D DNR
• Nguồn 12VDC
• IP67,Ø 111 mm × 82.4 mm ,400 g
