| Model | DS-2CD1143G0E-I |
| Camera | |
| Image Sensor | 1/3 inch Progressive Scan CMOS |
| Min. Illumination | Color: 0.028 Lux @ (F2.0, AGC ON) |
| Shutter Speed | 1/3 s to 1/100,000 s |
| Slow Shutter | Yes |
| Day & Night | IR Cut Filter |
| WDR | DWDR |
| Angle Adjustment | Pan: 0° to 355°, tilt: 0° to 75° |
| IR Range | Up to 30 m |
| Lens | |
| Lens Type | Fixed lens, 2.8/4 mm |
| Aperture | F2.0 |
| FOV | 2.8 mm, horizontal FOV 100°, vertical FOV 55°, diagonal FOV 117° 4 mm, horizontal FOV 77°, vertical FOV 42°, diagonal FOV 88° |
| Lens Mount | M12 |
| Video | |
| Max. Resolution | 2560 × 1440 |
| Video Compression | Main stream: H.265+/H.264+/H.265/H.264 Sub-stream: H.265/H.264/MJPEG |
| Video Bit Rate | 32 Kbps to 8 Mbps |
| Network | |
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour |
| Simultaneous Live View | Up to 6 channels |
| API | ONVIF (PROFILE S), ISAPI, SDK |
| User/Host | Up to 32 users, 3 levels: administrator, operator and user |
| Interface | |
| Communication | 1 RJ45 10M/100M self-adaptive Ethernet port |
| Smart Feature-set | |
| Basic Event | Motion detection, video tampering alarm, exception (illegal login) |
| Linkage Method | Upload to FTP, notify surveillance center, send email |
| Region of Interest | 1 fixed region for main stream |
| Image | |
| Image Enhancement | BLC, HLC, 3D DNR |
| Image Setting | Saturation, brightness, contrast, sharpness, AGC and white balance adjustable by client software or web browser |
| Day/Night Switch | Day/Night/Auto/Schedule |
| S/N Ratio | > 50dB |
| General | |
| General Function | Anti-flicker, heartbeat, mirror, privacy mask |
| Power Supply | 12 VDC ± 25%, Φ 5.5 mm coaxial power plug, reverse polarity protection; PoE (802.3af, class 3) |
| Material | Front cover: metal, back cover: plastic |
| Operating Conditions | -30°C to +60°C, Humidity 95% or less (non-condensing) |
| Protection | IP67, IK10 |
| Dimensions | Φ114 × 82.4 mm |
| Weight | 400 g |

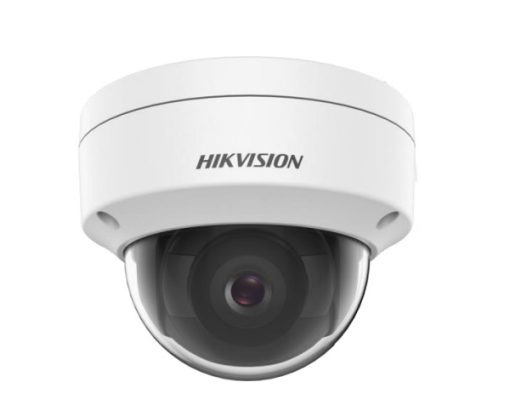

1-Line IP
DS-2CD1143G0E-I
Giá: Liên hệ
Cảm biến 1/3″ progressive scan CMOS
• Độ phân giải 2560×1440@20fps
• Ống kính cố định 2.8mm (đặt hàng 4/6mm)
• Độ nhạy sáng 0.01Lux@F1.2
• Hồng ngoại 30m
• DWDR, AGC, BLC, 3D DNR
• Nguồn 12VDC, PoE
• IP67, IK10, Φ111×82.4mm, 410g
