| Camera | ||
|---|---|---|
| Image Sensor: | | | 1/2.8” CMOS progressive scan CMOS |
| Signal System: | | | PAL/NTSC |
| Min. Illumination: | | | 0.028 lux @ (f/2.0, AGC on), 0 lux with IR |
| Shutter time: | | | 1/3 s to 1/10,000 s |
| Lens: | | | 4 mm @ f/2.0 (6 mm optional) Angle of view: 85°(4 mm), 52°(6 mm) |
| Lens Mount: | | | M12 |
| Day& Night: | | | IR cut filter with auto switch |
| Wide Dynamic Range: | | | 120 dB |
| Digital noise reduction: | | | 3D DNR |
| Compression Standard | ||
| Video Compression: | | | H.264/MJPEG/H.264+ |
| H.264 Type: | | | Main profile |
| Video bit rate: | | | 32Kbps~16Mbps |
| Dual Stream: | | | Yes |
| Image | ||
| Max. Image Resolution: | | | 1920 x 1080 |
| Frame Rate: | | | 30 fps (1920 x 1080, 1280 x 960, 1280 x 720) |
| Image Settings: | | | Rotate mode, Saturation, Brightness, Contrast adjustable by client software or web browser |
| BLC: | | | Yes, zone configurable |
| ROI: | | | Yes |
| 3D DNR: | | | Yes |
| Day/Night Switch: | | | IR cut filter with auto switch |
| Network | ||
| Network Storage: | | | NAS (Support NFS,SMB/CIFS), ANR |
| Alarm Trigger: | | | Line Crossing, Intrusion Detection, Motion detection, Dynamic analysis, Tampering alarm, Network disconnect , IP address conflict, Storage exception |
| Protocols: | | | TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP, PPPoE,NTP,UPnP,SMTP,SNMP,IGMP,802.1X,QoS,IPv6,Bonjour |
| Security: | | | One-key reset, Flash-prevention, dual stream, heartbeat, mirror, password protection, privacy mask, watermark, IP address filtering, Anonymous access |
| System Compatibility: | | | ONVIF, PSIA, CGI, ISAPI |
| Smart Feature-set | ||
| Line Crossing Detection: | | | Cross a pre-defined virtual line |
| Intrusion Detection: | | | Enter and loiter in a pre-defined virtual region |
| General | ||
| Operating Conditions: | | | -30 °C ~ 60 °C (-22 °F ~ 140 °F) Humidity 95% or less (non-condensing) |
| Power Supply: | | | 12 VDC ± 10%, PoE (802.3af) |
| Power Consumption: | | | Max. 5 W |
| Weather Proof: | | | IP67 |
| IR Range: | | | 30 meters |
| Dimensions: | | | 60.4×76.9×139.2 mm (2.4” × 3.0” × 5.5”) |
| Weight: | | | 500g (1.1 lbs) |
2-Line IP

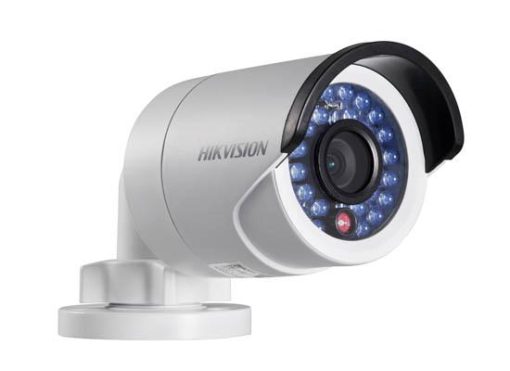

DS-2CD2022WD-I
Giá: Liên hệ
• Up to 2 Megapixel High Resolution
• Full HD1080p Video
• Dual Video Streams
• 4 mm or 6 mm Fixed Lens
• 120 dB Wide Dynamic Range
• 3D Digital Noise Reduction
• Smart Features
• PoE (802.3af)
• IR Range: 30 Meters (~100 feet)
• IP67 Protection
