Camera | |
Image Sensor | 1/3″ Progressive Scan CMOS |
Min. Illumination | Color: 0.003 Lux @ (F1.4, AGC ON), B/w: 0 Lux with IR |
Shutter Speed | 1/3 s to 1/100,000 s |
Slow Shutter | Yes |
P/N | P/N |
Wide Dynamic Range | 120 dB |
Day & Night | IR cut filter |
Angle Adjustment | Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360° |
Lens | |
Lens Type | Fixed focal lens, 2.8, 4, and 6 mm optional |
Iris Type | Fixed |
Focal Length & FOV | 2.8 mm, horizontal FOV: 103°, vertical FOV: 55°, diagonal FOV: 123° 4 mm, horizontal FOV: 83°, vertical FOV: 45°, diagonal FOV: 98°6 mm, horizontal FOV: 53°, vertical FOV: 29°, diagonal FOV: 62° |
Aperture | F1.4 |
Lens Mount | M12 |
DORI | |
DORI | 2.8 mm: D: 60.0 m, O: 23.8 m, R: 12.0 m, I: 6.0 m
4 mm: D: 80.0 m, O: 31.7 m, R: 16.0 m, I: 8.0 m 6 mm: D: 120.0 m, O: 47.6 m, R: 24.0 m, I: 12.0 m |
Illuminator | |
Supplement Light Type | IR |
IR Range | Up to 40 m |
IR Wavelength | 850 nm |
Smart Supplement Light | Yes |
Visual Alarm | Yes |
Video | |
Max. Resolution | 2688 × 1520 |
Main Stream | 50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720) 60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720) |
Sub-Stream | 50 Hz: 25 fps (640 × 480, 640 × 360) 60 Hz: 30 fps (640 × 480, 640 × 360) |
Third Stream | 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) *Third stream is supported under certain settings. |
Video Compression | Main stream: H.265/H.264/H.265+/H.264+ Sub-stream: H.265/H.264/MJPEG Third stream: H.265/H.264 *Third stream is supported under certain settings. |
Video Bit Rate | 32 Kbps to 8 Mbps |
H.264 Type | Baseline Profile/Main Profile/High Profile |
H.265 Type | Main Profile |
H.264+ | Main stream supports |
H.265+ | Main stream supports |
Bit Rate Control | CBR/VBR |
Scalable Video Coding (SVC) | H.264 and H.265 encoding |
Region Of Interest (ROI) | 1 fixed region for main stream and sub-stream |
Audio | |
Environment Noise Filtering | Yes |
Audio Sampling Rate | 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz |
Audio Compression | G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC |
Audio Bit Rate | 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC) |
Network | |
Simultaneous Live View | Up to 6 channels |
API | Open Network Video Interface (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK |
Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP |
User/Host | Up to 32 users. 3 user levels: administrator, operator and user |
Security | Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface |
Network Storage | MicroSD/SDHC/SDXC card (256 GB) local storage, and NAS (NFS, SMB/CIFS), auto network replenishment (ANR) Together with high-end Hikvision memory card, memory card encryption and health detection are supported. |
Client | iVMS-4200, Hik-Connect, Hik-Central |
Web Browser | Plug-in required live view: IE 10+ Plug-in free live view: Chrome 57.0+, Firefox 52.0+Local service: Chrome 57.0+, Firefox 52.0+ |
Image | |
SNR | ≥ 52 dB |
Day/Night Switch | Day, Night, Auto, Schedule |
Image Enhancement | BLC, HLC, 3D DNR |
Image Parameters Switch | Yes |
Image Settings | Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser |
Interface | |
Built-In Microphone | Yes |
Built-In Speaker | Power: 1.2 W. Max. sound pressure level: 10 cm: 95 dB. |
On-Board Storage | Built-in micro SD/SDHC/SDXC slot, up to 256 GB |
Hardware Reset | Yes |
Ethernet Interface | 1 RJ45 10 M/100 M self-adaptive Ethernet port |
Event | |
Basic Event | Motion detection (human and vehicle targets classification), video tampering alarm, exception |
Smart Event | Scene change detection |
Deep Learning Function | |
Face Capture | Yes |
Perimeter Protection | Line crossing detection, intrusion detection, region entrance detection, region exiting detection |
General | |
Linkage Method | Upload to NAS/memory card/FTP, notify surveillance center, trigger recording, trigger capture, strobe light, audible warning, send email |
Web Client Language | 33 languages
English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian |
General Function | Anti-flicker, heartbeat, mirror, privacy mask, flash log, password reset via email, pixel counter |
Software Reset | Yes |
Firmware Version | V5.5.112 |
Storage Conditions | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
Startup And Operating Conditions | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
Power Supply | 12 VDC ± 25%, reverse polarity protection PoE: 802.3af, Class 3 |
Power Consumption And Current | 12 VDC, 0.54 A, max. 6.5 W PoE (802.3af, 36 V to 57 V), 0.3 A to 0.2 A, max. 8.0 W |
Power Interface | Ø5.5 mm coaxial power plug |
Camera Dimension | 72.9 mm × 73.3 mm × 191.1 mm (2.9″ × 2.9″ × 7.5″) |
Package Dimension | 234 mm × 120 mm × 117 mm (9.2″ × 4.7″ × 4.6″) |
Camera Weight | Approx. 590 g (1.3 lb.) |
With Package Weight | Approx. 820 g (1.8 lb.) |
2-Line IP

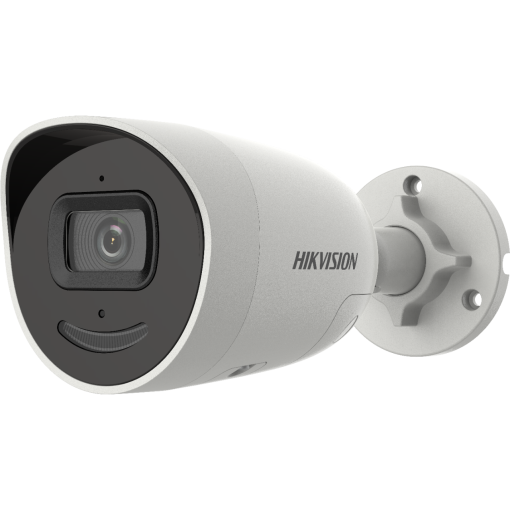

DS-2CD2046G2-IU/SL – Camera bullet mini cảnh báo âm thanh ánh sáng dòng AcuSense 4MP
Giá: Liên hệ
– Hình ảnh chất lượng cao với độ phân giải 4MP
– Công nghệ DarkFighter cung cấp hình ảnh tuyệt vời trong điều kiện ánh sáng yếu
– Công nghệ WDR 120dB chống ngược sáng
– Công nghệ Deep Learning phân biệt người và vật giúp giảm cảnh báo ảo, chụp hình khuôn mặt, phát hiện vượt hàng rào
– Cảnh báo âm thanh ánh sáng
– Tích hợp loa mic
– Chuẩn nén H.265+
– Lớp vỏ chuẩn IP67
