| Model | DS-2CD2143G0-IU |
| Camera | |
| Image Sensor | 1/3 inch Progressive Scan CMOS |
| Min. Illumination | Color: 0.018 Lux @ (F1.6, AGC ON), 0 Lux with IR |
| Shutter time | 1/3 s to 1/100,000 s |
| Slow shutter | Support |
| Lens | 2.8 (4mm, 6mm option) |
| Lens Mount | M12 |
| Day & Night | IR cut filter with auto switch |
| Wide Dynamic Range | 120 dB |
| Digital noise reduction | 3D DNR |
| Focus | Fixed |
| Adjustment Range | Pan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355° |
| Compression Standard | |
| Video Compression | H.265+/H.265/H.264+/H.264/MJPEG |
| Video Bit Rate | 32Kbps~16Mbps |
| Audio Compression | G.711/G.722.1/G.726/MP2L2/PCM/MP3 |
| Triple Streams | Yes |
| Image | |
| Max. Resolution | 2688 × 1520 |
| Image Enhancement | BLC/3D DNR/ROI/HLC |
| Image Setting | Rotate mode, saturation, brightness, contrast, sharpness and white balance adjustable by client software or web browser |
| Target Cropping | No |
| BLC | Yes, zone configurable |
| ROI | 1 fixed region for main stream and sub-stream |
| Day/Night Switch | Day/Night/Auto/Schedule |
| Network | |
| Network Storage | microSD/SDHC/SDXC card (128G), local storage and NAS (NFS, SMB/CIFS), ANR |
| Alarm Trigger | Motion detection, video tampering alarm, network disconnected, IP address conflict, illegal login, HDD full, HDD error |
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP™, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS |
| General Function | Anti-flicker, three streams, heartbeat, mirror, 4 regions of privacy mask |
| System Compatibility | ONVIF (PROFILE S, PROFILE G), ISAPI, SDK |
| Interface | |
| On-board storage | Built-in Micro SD/SDHC/SDXC slot, up to 128 GB |
| Communication | 1 RJ45 100M self-adaptive Ethernet port |
| Audio | Built-in mic |
| Reset Button | Yes |
| Smart Feature-set | |
| Behavior Analysis | Line crossing detection, intrusion detection |
| Line Crossing Detection | Cross a pre-defined virtual line |
| Intrusion Detection | Enter and loiter in a pre-defined virtual region |
| Recognition | Face Detection |
| General | |
| IR Range | 30m |
| Power Supply | 12 VDC ± 25%, 5.5 mm coaxial power plug, PoE (802.3af, class 3) |
| Weather Proof | IP66 |
| Impact Protection | IK10 |
| IR Range | 30m |
| Dimensions | Φ121 × 92 mm |
| Weight | 570g |

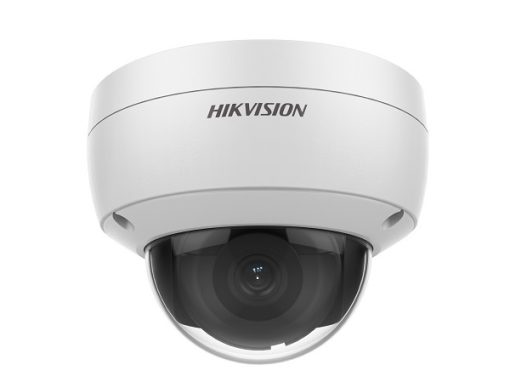

2-Line IP
DS-2CD2143G0-IU
Giá: Liên hệ
Cảm biến 1/3″ Progressive Scan CMOS
• Độ phân giải 2688 × 1520@30fps
• Ống kính cố định 2.8mm (đặt hàng 4/6 mm)
• Độ nhạy sáng 0.018Lux@F1.6
• Hồng ngoại 30m
• WDR, HLC, BLC, 3D DNR
• Khe cắm thẻ nhớ microroSD 128GB (max)
• Tích hợp micro
• Nguồn 12VDC, PoE
• IP66, LK10
• : Φ121 × 92 mm, 570g
