| Model | DS-2CD2423G0-IW |
| Camera | |
| Image Sensor | 1/2.7 inch Progressive Scan CMOS |
| Min. Illumination | Color: 0.01 Lux @ (F1.2, AGC ON), 0.028 lux @(F2.0, AGC ON), 0 lux with IR |
| Shutter Speed | 1/3 s to 1/100,000 s |
| Slow Shutter | Yes |
| Day & Night | IR Cut Filter |
| Digital Noise Reduction | 3D DNR |
| WDR | 120dB |
| 3-Axis Adjustment | Pan: 0°to 360°, tilt: 0°to 90°, rotate: 0°to 360° |
| Lens | |
| Focal length | 2.8mm |
| Aperture | F2.0 |
| FOV | 2.8 mm: horizontal FOV: 114°, vertical FOV: 62°, diagonal FOV: 135° |
| Lens Mount | M12 |
| Compression Standard | |
| Video Compression | Main stream: H.265/H.264 Sub-stream: H.265/H.264/MJPEG Third stream: H.265/H.264 |
| Video Bit Rate | 256 Kbps to 16 Mbps |
| Audio Compression | G722.1/ G711ulaw/ G711alaw/ G726/ MP2L2/ PCM |
| Image | |
| Max. Resolution | 1920 × 1080 |
| Image Enhancement | BLC, 3D DNR |
| Image Settings | Rotate mode, saturation, brightness, contrast, sharpness adjustable by client software or web browser |
| Day/Night Switch | Day/Night/Auto/Schedule |
| Network | |
| Network Storage | Support MicroSD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR |
| Alarm Trigger | Motion detection, video tampering alarm, illegal login |
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, DHCP, DNS, RTP, RTSP, RTCP, NTP, IGMP, QoS, UDP |
| General Function | Anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark |
| API | ONVIF (PROFILE S), ISAPI |
| Interface | |
| Communication | 1 RJ45 10M/ 100M Ethernet interface |
| Audio | 1 built-in mic, 1 built-in speaker, mono sound |
| On-board storage | Built-in Micro SD/SDHC/SDXC slot, up to 128G |
| Wifi | |
| Wireless Standards | IEEE 802.11b/g/n |
| Frequency Range | 2.412 GHz to 2.4835 GHz |
| Wireless Range | 50m |
| General | |
| Power Supply | 12 VDC ± 25%, PoE (802.3af, class 3) |
| Power Consumption | 12 VDC, 0.5A, max. 6W, Φ 5.5 mm coaxial plug power PoE (802.3af, 36V to 57V), 0.2 A to 0.1 A, max. 7W |
| IR Range | up to 10m |
| Material | Plastic |
| Dimensions | 102.8 × 65.2 × 32.6 mm |
| Weight | 128g |
2-Line IP

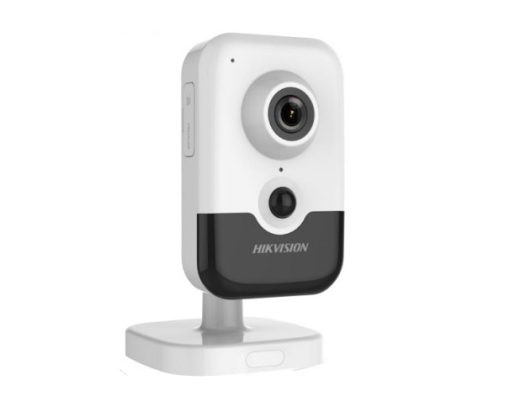

DS-2CD2423G0-IW
Giá: Liên hệ
Cảm biến 1/2.7″ Progressive Scan CMOS
• Độ phân giải 1920×1080@25fps
• Ống kính cố định 2.8mm
• Độ nhạy sáng 0.01Lux@F2.0
• Hồng ngoại 10m, PIR 10 m
• 120dB WDR, AGC, BLC, 3D DNR
• Khe cắm thẻ nhớ microroSD 128GB (max)
• Wi-Fi, tích hợp âm thanh 2 chiều
• Nguồn 12VDC, PoE
• 102.8×65.2×32.6mm, 128g
