2-Line IP

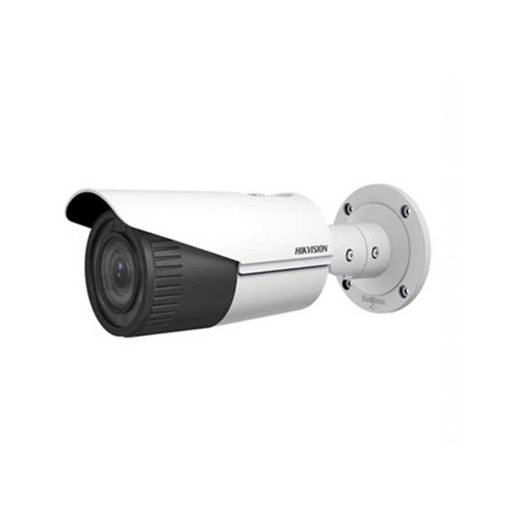

DS-2CD2621G0-IZS

Giá: Liên hệ

Cảm biến 1/2.8″ Progressive Scan CMOS
• Độ phân giải 1920×1080@25fps
• Ống kính tự động thay đổi tiêu cự 2.8~12mm
• Độ nhạy sáng 0.01Lux@F1.2
• Hồng ngoại 30m
• 120dB WDR, AGC, BLC, 3D DNR
• Khe cắm thẻ nhớ microroSD 128GB (max)
• Nguồn 12VDC, PoE
• IP67, Φ105 × 294.5mm, 1050g
• Tích hợp cổng âm thanh

Danh mục: ,

Camera
Image Sensor 1/2.8″ Progressive Scan CMOS
Min. Illumination

Color: 0.01 Lux @(F1.2, AGC ON), 0.028Lux @(F2.0, AGC ON), 0 Lux with IR
Shutter Speed 1/3 s to 1/100,000 s
Slow Shutter Yes
Auto-Iris No
Day & Night IR Cut Filter
Digital Noise Reduction 3D DNR
WDR 120 dB
3-Axis Adjustment Pan: 0° to 360°, tilt: 0° to 100°, rotation: 0° to 360°
Lens
Focal Length 2.8 to 12 mm
Aperture F2.0
Focus -Z: Auto

Without –Z: Manual
FOV 2.8 mm: horizontal FOV: 115°, vertical FOV: 62°, diagonal FOV: 136°

4 mm: horizontal FOV: 86°, vertical FOV: 47°, diagonal FOV: 103°

6 mm: horizontal FOV: 55°, vertical FOV: 31°, diagonal FOV: 62°
Lens Mount Φ14
IR
IR Range Up to 30 m
Wavelength 850nm

Compression Standard
Video Compression Main stream: H.265/H.264

Sub-stream: H.265/H.264/MJPEG
H.264 Type Baseline Profile/Main Profile/High Profile
H.264+ Main stream supports
H.265 Type Main Profile
H.265+ Main stream supports
Video Bit Rate 32 Kbps to 8 Mbps
Audio Compression (-S) G.711/G.722.1/G.726/MP2L2/PCM
Audio Bit Rate (-S) 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)
Smart Feature-set
Behavior Analysis

Line crossing detection, intrusion detection
Face Detection

Yes
Region of Interest 1 fixed region for main stream

Max. Resolution 1920 × 1080
Main Stream

50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720)

60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720)
Sub-Stream

50Hz: 25fps (640 × 480, 640 × 360, 320 × 240)

60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
Image Enhancement

BLC/3D DNR
Image Settings

Rotate mode, saturation, brightness, contrast, sharpness adjustable by client software or web browser
Target Cropping

No
Day/Night Switch Day/Night/Auto/Schedule/Triggered by alarm in (-S)

Network
Network Storage Support built-in microSD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR
Alarm Trigger

Motion detection, video tampering, network disconnected, IP address conflict, illegal login, HDD full, HDD error
Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP™, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour
General Function One-key reset, anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter
Firmware Version V5.5.6
API ONVIF (PROFILE S, PROFILE G), ISAPI
Simultaneous Live View Up to 6 channels

User/Host

 Up to 32 users

3 levels: Administrator, Operator and User

Client

 iVMS-4200, Hik-Connect, iVMS-5200, iVMS-4500

Web Browser

 IE8+, Chrome 31.0-44, Firefox 30.0-51, Safari 8.0+

Interface

Audio (-S) 1 input (line in), 1 output (line out), mono sound
Communication Interface 1 RJ45 10M/100M self-adaptive Ethernet port
Alarm (-S) 2 inputs, 2 outputs
Video Output (-S) CVBS
On-board Storage Built-in micro SD/SDHC/SDXC slot, up to 128 GB
SVC H.264 and H.265 encoding support
Reset Button Yes

Audio (-S)

Environment Noise Filtering

Yes
Audio Sampling Rate

8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz

General
Operating Conditions -30 °C to +60 °C (22 °F to +140 °F), humidity 95% or less (non-condensing)
Power Supply 12 VDC ± 25%, Φ 5.5 mm coaxial plug power

PoE (802.3af, class 3)

Power Consumption and Current

 -Z:

12 VDC, 0.9 A, max. 11 W

PoE: (802.3af, 36V-57V), 0.4 A to 0.2 A, max. 12.9 W

Without –Z:

12 VDC, 0.6 A, max. 7W

PoE: (802.3af, 36V-57V), 0.3 A to 0.1 A, max. 9 W
Protection Level IP67
Material Metal
Dimensions Φ 105 × 294.5 mm (Φ 4.1″ × 11.6″)
Weight Camera: approx. 1050 g (2.3 lb.)

With package: approx. 1500 g (3.3 lb.)
