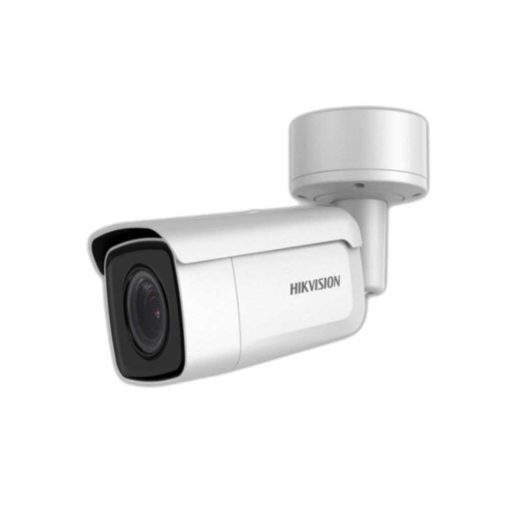

| Camera | ||
|---|---|---|
| Image Sensor: | 1/3″ Progressive Scan CMOS | |
| Signal System: | PAL/NTSC | |
| Min. Illumination: | Color: 0.01 Lux @ (F1.2, AGC ON), 0.018 Lux @ (F1.6, AGC ON), 0 Lux with IR | |
| Shutter time: | 1/3 s to 1/100,000 s | |
| Slow shutter: | Support | |
| Lens: | horizontal FOV: 104° to 29° vertical FOV: 55° to 17° diagonal FOV: 125° to 34° |
|
| Lens Mount: | φ14 | |
| Adjustment Range: | Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360° | |
| Day& Night: | IR cut filter with auto switch | |
| Wide Dynamic Range: | 120 dB | |
| Digital noise reduction: | 3D DNR | |
| Focus: | Auto | |
| Compression Standard | ||
|---|---|---|
| Video Compression: | H.265+/H.265/H.264+/H.264/MJPEG | |
| Video bit rate: | 256Kbps~16Mbps | |
| Audio Compression: | G.711/G.722.1/G.726/MP2L2/PCM | |
| Audio bit rate: | 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2) | |
| Triple Streams: | Yes | |
| Image | ||
|---|---|---|
| Max. Image Resolution: | 2688 × 1520 | |
| Frame Rate: | 50Hz:25fps (2688 × 1520, 2560 × 1440, 2304 × 1296, 1920 × 1080) 60Hz: 30fps (2688 × 1520, 2560 × 1440, 2304 × 1296, 1920 × 1080) |
|
| Sub Stream: | 50Hz: 25fps (640 × 480, 640 × 360, 320 × 240) 60Hz: 30fps (640 × 480, 640 × 360, 320 × 240) |
|
| Third Stream: | 50Hz: 25fps (1280 × 720, 640 × 360, 352 × 288) 60Hz: 30fps (1280 × 720, 640 × 360, 352 × 240) |
|
| Image Enhancement: | BLC/3D DNR/BLC | |
| Image Settings: | Rotate Mode, Saturation, Brightness, Contrast, Sharpness adjustable by client software or web browser | |
| Target Cropping: | No | |
| ROI: | 1 fixed region for main stream and sub-stream | |
| Day/Night Switch: | Day/Night/Auto/Schedule/Triggered by alarm in | |
| Network | ||
|---|---|---|
| Network Storage: | microSD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR | |
| Alarm Trigger: | Motion detection, video tampering alarm, network disconnected, IP address conflict, illegal login, HDD full, HDD error | |
| Protocols: | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP?, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour | |
| General Function: | One-key reset, Anti-Flicker, heartbeat, mirror, password protection, privacy mask, Watermark, IP address filtering |
|
| System Compatibility: | ONVIF (Profile S, Profile G),ISAPI | |
| Interface | ||
|---|---|---|
| Audio: | 1 input (line in/mic.in, 3.5 mm), 1 output (line out, 3.5 mm), mono sound | |
| Communication Interface: | 1 RJ45 10M / 100M Ethernet interface | |
| Alarm: | 1 input, 1 output (max. 12 VDC, 30 mA), terminal block | |
| Video Output: | 1Vp-p Composite Output (75 Ω, BNC) | |
| On-board storage: | Built-in Micro SD/SDHC/SDXC slot, up to 128 GB | |
| Reset Button: | Yes | |
| Audio | ||
|---|---|---|
| Environment Noise Filtering: | Support | |
| Audio Sampling Rate: | 8 kHz/16 kHz/32 kHz/44.1 kHZ/48 kHz | |
| Smart Feature-set | ||
|---|---|---|
| Behavior Analysis: | Line crossing detection, intrusion detection | |
| Line Crossing Detection: | Cross a pre-defined virtual line | |
| Intrusion Detection: | Enter and loiter in a pre-defined virtual region | |
| Recognition: | Face Detection | |
| General | ||
|---|---|---|
| Operating Conditions: | -30 °C ~ 60 °C (-22 °F ~ 140 °F) Humidity 95% or less (non-condensing) |
|
| Power Supply: | 12 VDC ± 25%, PoE (802.3af Class3) | |
| Power Consumption: | 12 VDC, 1.2A, max. 14.5W PoE (802.3at, 42.5V to 57V), 0.43A to 0.3A, max. 18W |
|
| Impact Protection: | IK10 | |
| Weather Proof: | IP67 | |
| IR Range: | Up to 50m | |
| Dimensions: | Φ 144.13 × 332.73 mm (Φ 5.7″ × 13.1″) | |
| Weight: | Camera: Approx. 1740 g (3.8 lb.) With Package: Approx. 2610 g (5.8 lb.) |
|
