2-Line IP

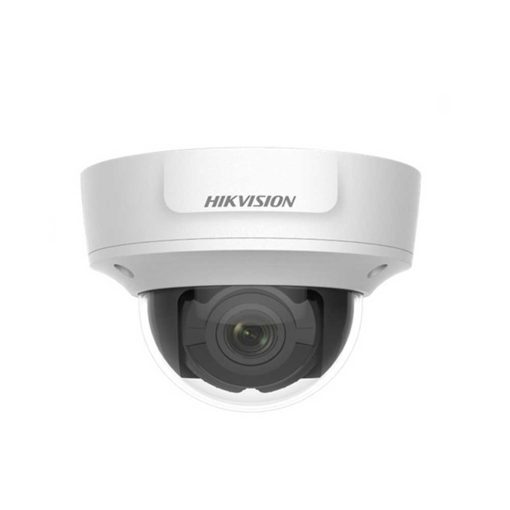

DS-2CD2721G0-IZS

Giá: Liên hệ

1/2.8″ Progressive Scan CMOS
 1920 × 1080@30fps
 2.8 to 12 mm varifocal lens
 Color: 0.01 Lux @(F1.2, AGC ON), 0.028Lux @(F2.0, AGC ON);
 H.265+, H.265, H.264+, H.264
 120dB WDR
 2 Behavior analyses
 BLC/3D DNR/ROI
 Built-in micro SD/SDHC/SDXC card slot, up to 128 GB

Danh mục: ,

Camera
Image Sensor 1/2.8″ Progressive Scan CMOS
Min. Illumination

Color: 0.01 Lux @(F1.2, AGC ON), 0.028Lux @(F2.0, AGC ON);

B/W: 0.001 Lux @(F1.2, AGC ON), 0.0028 Lux @(F2.0, AGC ON), 0 Lux with IR
Shutter Speed 1/3 s to 1/100,000 s
Slow Shutter Yes
Auto-Iris No
Day & Night IR Cut Filter
Digital Noise Reduction 3D DNR
WDR 120 dB
3-Axis Adjustment Pan: 0° to 355°, tilt: 0° to 75°, rotation: 0° to 355°
Lens
Focal Length 2.8 to 12 mm
Aperture F2.0
Focus -Z: Auto

Without –Z: Manual
FOV Horizontal FOV: 99.6° to 35°, vertical FOV: 53.5° to 20°, diagonal FOV: 118.6° to 40.2°
Lens Mount Φ14
IR
IR Range Up to 30 m
Wavelength 850nm

Compression Standard
Video Compression Main stream: H.265/H.264

Sub-stream: H.265/H.264/MJPEG
H.264 Type Baseline Profile/Main Profile/High Profile
H.264+ Main stream supports
H.265 Type Main Profile
H.265+ Main stream supports
Video Bit Rate 32 Kbps to 8 Mbps
Audio Compression (-S) G.711/G.722.1/G.726/MP2L2/PCM
Audio Bit Rate (-S) 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)
Smart Feature-set
Behavior Analysis

Line crossing detection, intrusion detection
Face Detection

Yes
Region of Interest 1 fixed region for main stream

Max. Resolution 1920 × 1080
Main Stream

50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720)

60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720)
Sub-Stream

50Hz: 25fps (640 × 480, 640 × 360, 320 × 240)

60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
Image Enhancement

BLC/3D DNR
Image Settings

Rotate mode, saturation, brightness, contrast, sharpness adjustable by client software or web browser
Target Cropping

No
Day/Night Switch Day/Night/Auto/Schedule/Triggered by alarm in (-S)

Network
Network Storage Support built-in microSD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR
Alarm Trigger

Motion detection, video tampering, network disconnected, IP address conflict, illegal login, HDD full, HDD error
Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP™, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour
General Function One-key reset, anti-flicker, heartbeat, three streams, mirror, password protection, privacy mask, watermark, IP address filter
Firmware Version V5.5.6
API ONVIF (PROFILE S, PROFILE G), ISAPI
Simultaneous Live View Up to 6 channels

User/Host

 Up to 32 users

3 levels: Administrator, Operator and User

Client

 iVMS-4200, Hik-Connect, iVMS-5200, iVMS-4500

Web Browser

 IE8+, Chrome 31.0-44, Firefox 30.0-51, Safari 8.0+

Interface

Audio (-S) 1 input (line in), 1 output (line out), mono sound
Communication Interface 1 RJ45 10M/100M self-adaptive Ethernet port
Alarm (-S) 2 inputs, 2 outputs
Video Output (-S) CVBS
On-board Storage Built-in microSD/SDHC/SDXC slot, up to 128 GB
SVC H.264 and H.265 encoding support
Reset Button Yes

Audio (-S)

Environment Noise Filtering

Yes
Audio Sampling Rate

8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz

General
Operating Conditions -30 °C to +60 °C (22 °F to +140 °F), humidity 95% or less (non-condensing)
Power Supply 12 VDC ± 25%, Φ 5.5 mm coaxial plug power

PoE (802.3af, class 3)

Power Consumption and Current

 -Z:

12 VDC, 0.8 A, max. 10 W

PoE: (802.3af, 36V-57V), 0.4 A to 0.2 A, max. 12 W

Without –Z:

12 VDC, 0.5 A, max. 6 W

PoE: (802.3af, 36V-57V), 0.3 A to 0.1 A, max. 8 W
Protection Level IP67
Material Front cover & Base: metal, bubble: plastic
Dimensions Φ 153.3 × 111.6 mm (Φ 6″ × 4.4″)
Weight Camera: approx. 880 g (1.9 lb.)

With package: approx. 1300 g (2.9 lb.)
