| Model | DS-2CD2723G1-IZS |
| Camera | |
| Image Sensor | 1/2.8 inch progressive scan CMOS |
| Min. Illumination | Color: 0.018 lux @ (f/1.6, AGC on), 0 lux with IR |
| Shutter Speed | 1/3 s to 1/100, 000 s |
| Slow Shutter | Yes |
| Auto-Iris | No |
| Day &Night | IR cut filter |
| Digital Noise Reduction | 3D-DNR |
| WDR | 120dB |
| Angle Adjustment | Pan: 0° to 355°, tilt: 0° to 75°, rotation: 0° to 355° |
| Lens | |
| Focal Length | 2.8 to 12 mm motorized varifocal lens |
| Aperture | F1.6 |
| Focus | Auto |
| FOV | Horizontal FOV: 110° to 31°, vertical FOV: 58° to 18°, diagonal FOV: 136° to 36° |
| Lens Mount | Φ14 |
| IR | |
| IR Range | Up to 30 m |
| Wavelength | 850 nm |
| Compression Standard | |
| Video Compression | Main stream: H.265+/ H.265/ H.264+/ H.264, sub-stream: H.265+/ H.265/ H.264+/ H.264/ MJPEG, third stream: H.265+/ H.265/ H.264+/ H.264 |
| H.264 Type | Main Profile/High Profile/Baseline Profile |
| H.265 Type | Main Profile |
| Audio Compression | G.711/G.722.1/G.726/MP2L2/PCM |
| Video Bit Rate | 256 Kbps to 16 Mbps |
| Smart Feature-set | |
| Region of Interest | 1 fixed region for main stream and sub-stream |
| Image | |
| Max. Resolution | 1920 x 1080 |
| Image Enhancement | BLC, 3D DNR |
| Image Settings | Rotate mode, saturation, brightness, contrast, sharpness, AGC, and white balance are adjustable by client software or web browser |
| Day/Night Switch | Day/night/auto/schedule/triggered by alarm in |
| Network | |
| Network Storage | MicroSD/SDHC/SDXC card (128 GB), local storage and NAS (NFS,SMB/CIFS), ANR |
| Alarm Trigger | Motion detection, video tampering alarm, illegal login |
| API | ONVIF (PROFILE S, PROFILE G), ISAPI |
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, DHCP, DNS, RTP, RTSP, RTCP, NTP, IGMP, QoS, UDP |
| User/Host | Up to 32 users |
| 3 levels: Administrator, Operator and User | |
| Simultaneous Live View | Up to 6 channels |
| Client | iVMS-4200, Hik-Connect |
| Web Browser | Plug-in required live view: IE 8+, Chrome 41.0 to 44, Firefox 30.0 to 51, Safari 8.0 to 11 |
| Plug-in free live view: Chrome 45.0+, Firefox 52.0+ | |
| Interface | |
| Audio | 1 input (line in/mic.in, 3.5 mm), 1 output (line out, 3.5 mm), mono sound |
| Alarm | 1 input, 1 output (up to 12 VDC, 30 mA), terminal block |
| Video Output | 1 Vp-p Composite Output(75Ω/BNC) |
| On-Board Storage | Built-in microSD/SDHC/SDXC slot, up to 128 GB |
| SVC | H.264 and H.265 encoding |
| Reset Button | Yes |
| Communication Interface | 1 RJ45 10M/100M self-adaptive Ethernet port |
| Audio | |
| Environment Noise Filtering | Yes |
| Audio Sampling Rate | 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz |
| General | |
| Power Supply | 12VDC ± 25%, terminal block, PoE (802.3af, class 3) |
| Ingress Protection | IP67, IK10 |
| Material | Metal |
| Dimensions | Φ 153.3 x 133.1 mm |
| Weight | 0.84kg |

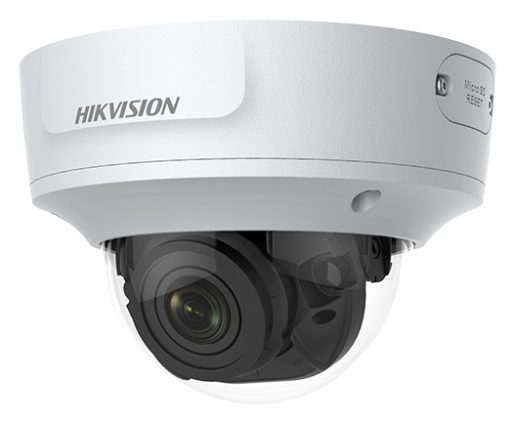

2-Line IP
DS-2CD2723G1-IZS
Giá: Liên hệ
Cảm biến 1/2.8″ Progressive Scan CMOS
• Độ phân giải 1920×1080@25fps
• Ống kính tự động thay đổi tiêu cự 2.8~12mm
• Độ nhạy sáng 0.01Lux@F1.2
• Hồng ngoại 30m
• 120dB WDR, AGC, BLC, 3D DNR, HLC
• Khe cắm thẻ nhớ microroSD 128GB (max)
• Phát hiện khuôn mặt, cổng âm thanh
• Nguồn 12VDC, PoE
• IP67, Φ153.3x111mm, 835g
